Description

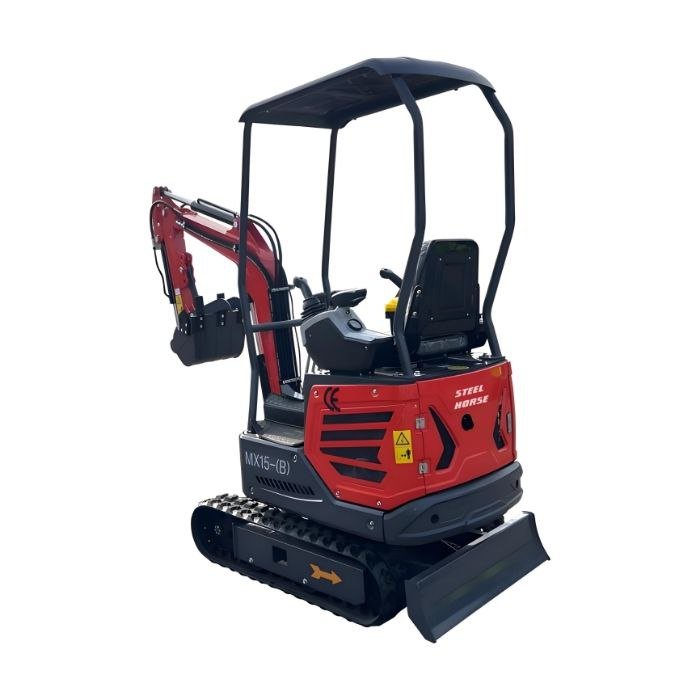

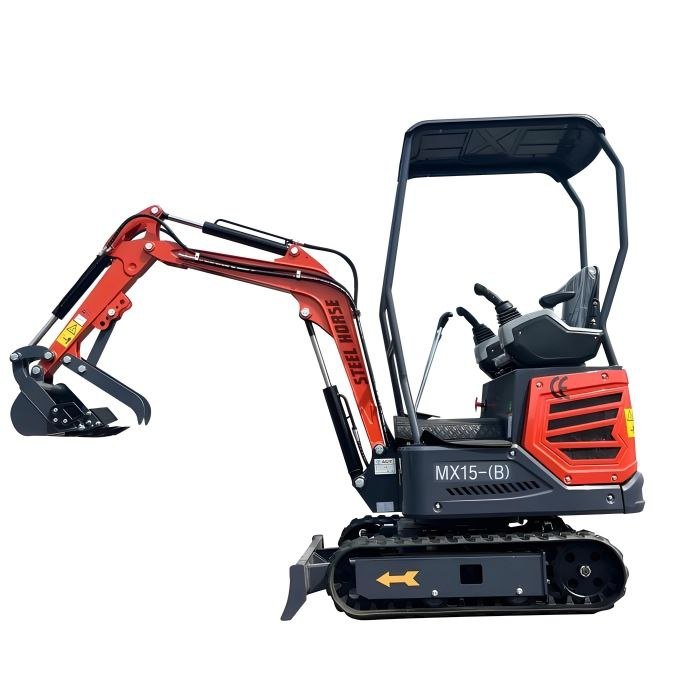

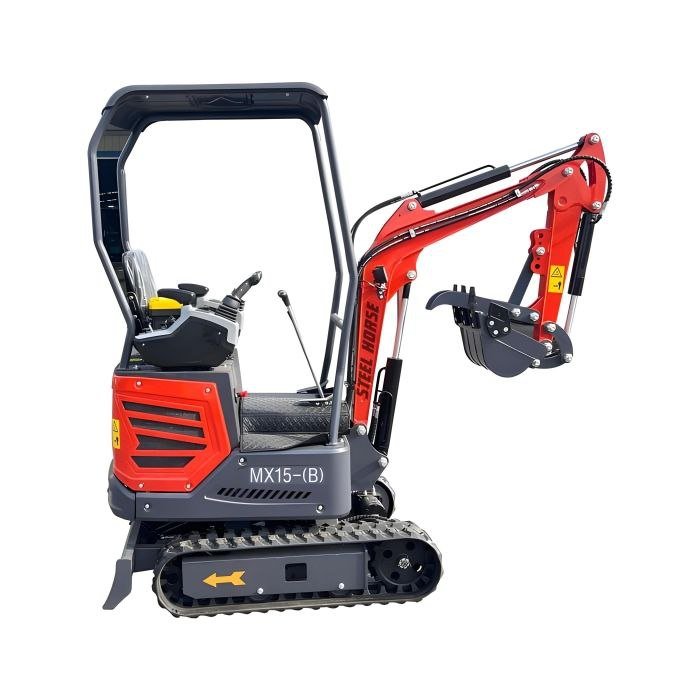

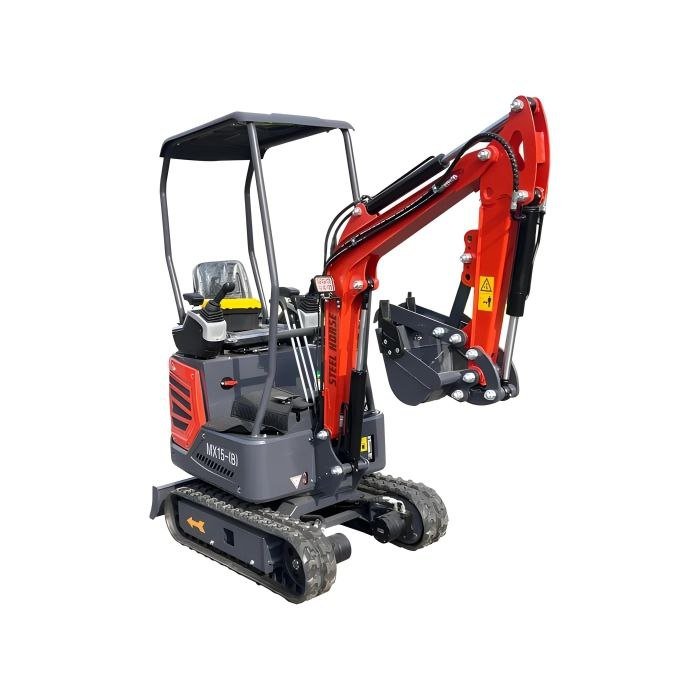

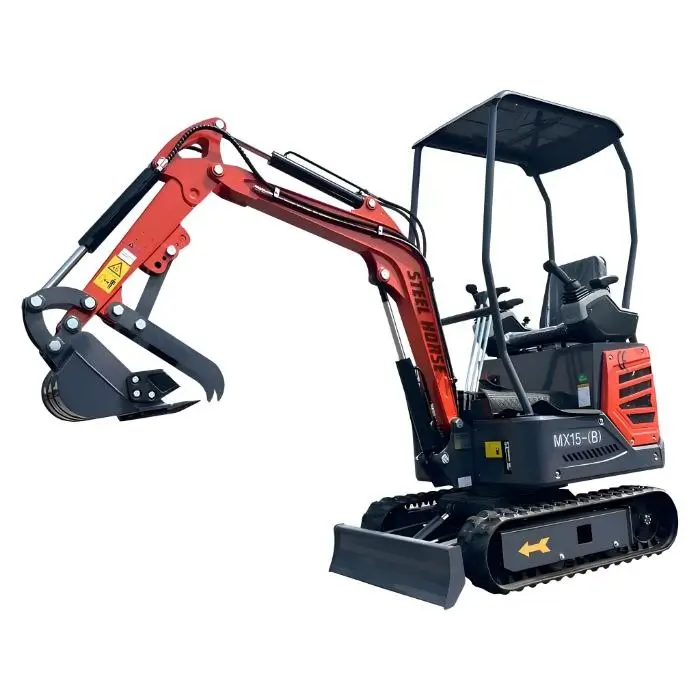

1-Ton Mini Excavator PLUS with Pilot Controls, Swing Boom & Hydraulic Thumb

The Upgraded 1-Ton Mini Excavator PLUS is built for operators who want maximum control, comfort, and efficiency in a compact machine. Featuring pilot (joystick) controls, this model delivers smoother hydraulic response and reduced operator fatigue compared to standard mini excavators.

The side-swing boom allows precise digging alongside structures and obstacles, while the hydraulic thumb makes handling rocks, debris, and demolition material fast and controlled. Enhanced features set this PLUS model apart, making it ideal for contractors and property owners who demand more from their equipment.

Compact enough for tight access yet powerful enough for serious work, this excavator is perfect for landscaping, trenching, utility work, property maintenance, and light construction.

PLUS Model Key Features & Benefits

• Pilot (Joystick) Controls – smoother, more precise operation

• Side-Swing Boom – dig parallel to walls and foundations

• Hydraulic Thumb – efficient material handling and cleanup

• Upgraded Feature Package – improved usability and productivity

• Compact 1-Ton Class Design – easy transport and tight-access capability

• Dozer Blade – added stability and grading performance

• LED Work Light – better visibility on job sites

General

• Operating Weight: 0.9 ton (1,985 lbs)

• Overall Length: 89 in (2,260 mm)

• Overall Width: 37.7 in (958 mm)

• Overall Height: 86.5 in (2,200 mm)

• Track Size: 180 × 72 × 37 (width × pitch × links)

Working Range

• Max Digging Depth: 69.5 in (1,764 mm)

• Max Digging Height: 105 in (2,670 mm)

• Max Dumping Height: 75 in (1,900 mm)

• Max Reach at Ground: 134 in (3,400 mm)

• Dozer Blade Width: 36 in

• Dozer Blade Height: 8 in

Engine & Performance

• Engine Type: Gasoline

• Engine Brand: Briggs & Stratton

• Engine Model: XR

• Rated Power: 13.5 HP (10.5 kW)

• Displacement: 420 cc

• Fuel Capacity: 1.7 gal

• Fuel Consumption: 0.5–1.2 L/hr

Hydraulic System

• Hydraulic Flow: 5.7 GPM

• Hydraulic Pressure: 2,300 PSI

• Hydraulic Tank Capacity: 4.8 gal
