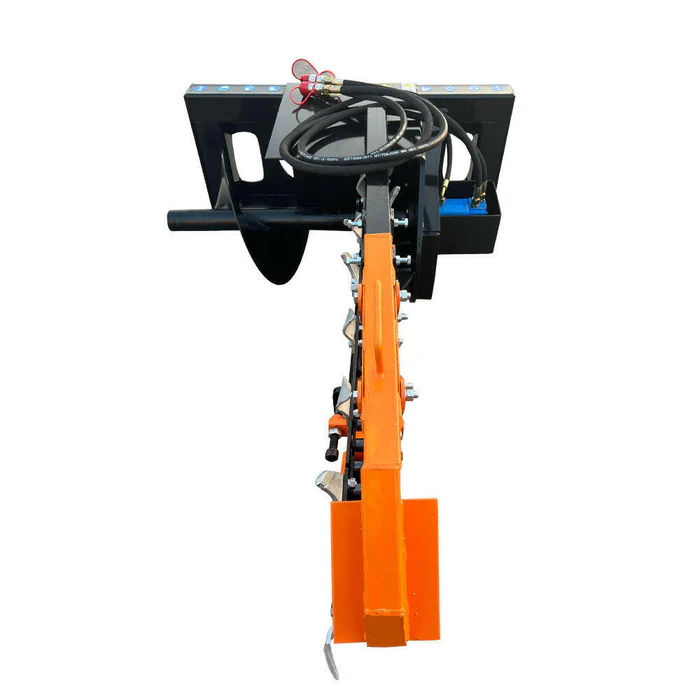

48″ Skid Steer Trencher Attachment

Description

The  48″ Skid Steer Trencher Attachment is built for high-production trenching where speed and consistency are non-negotiable. Unlike smaller mini-loaders, this full-size skid steer attachment utilizes the power of your loader’s auxiliary hydraulics to maintain aggressive chain speeds even in compacted terrain. The result is a clean, uniform trench that requires minimal manual cleanup.

Manual Side-Shift for Tight Spaces

One of the standout features of this model is the manual side-shift mechanism. This allows the operator to shift the entire digging boom to the right, enabling you to trench directly alongside buildings, walls, or fences. When working in residential or municipal settings where space is tight, this versatility eliminates the need for manual digging in corners or along foundations.

High-Torque Planetary Drive System

The heart of the trencher is a robust hydraulic planetary drive. This system translates your skid steer’s hydraulic flow into massive rotational torque, allowing the chain to grind through subterranean obstacles that would stall a direct-drive motor. To ensure longevity, the unit includes a third case drain line, which protects the hydraulic motor by releasing internal pressure—a critical feature for heavy-duty, long-duration digging tasks.

Integrated Spoil Management

Efficiency isn’t just about how fast you dig; it’s about how clean the job site stays. The  48″ Skid Steer Trencher Attachment features an integrated 15-inch clearing auger that neatly piles the excavated soil (spoil) to the side of the trench. Simultaneously, the heavy-duty crumber shoe follows behind the chain, scraping the bottom of the trench to ensure it is free of loose crumbs and ready for pipe or cable installation.

Key Features & Benefits

• 48″ Nominal Digging Depth: Adjustable depth control allows for precision digging from 36″ to 60″ depending on soil conditions.

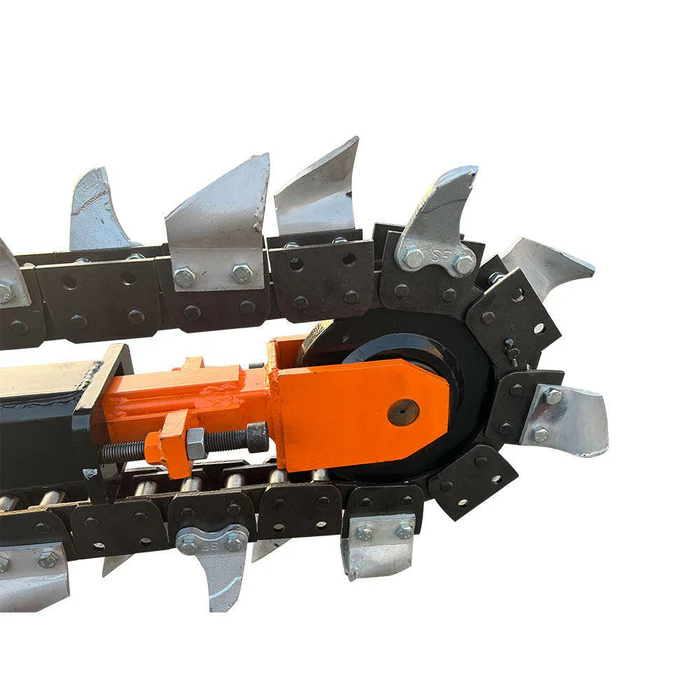

• Aggressive Chain Configuration: Features a mix of cup teeth for soil removal and shark-style teeth for cutting through roots and rock.

• Side-Shift Capability: Trench closer to structures with the easy-to-adjust manual side-shift frame.

• Three-Hose System: Includes In, Out, and a Case Drain line to protect the hydraulic motor from pressure spikes.

• Heavy-Duty Scraper Shoe: Spring-loaded crumber clears the trench floor for a professional finish.

• Universal Quick-Attach: Fits all standard-flow and high-flow skid steers with a universal mounting plate.

Technical Specifications
