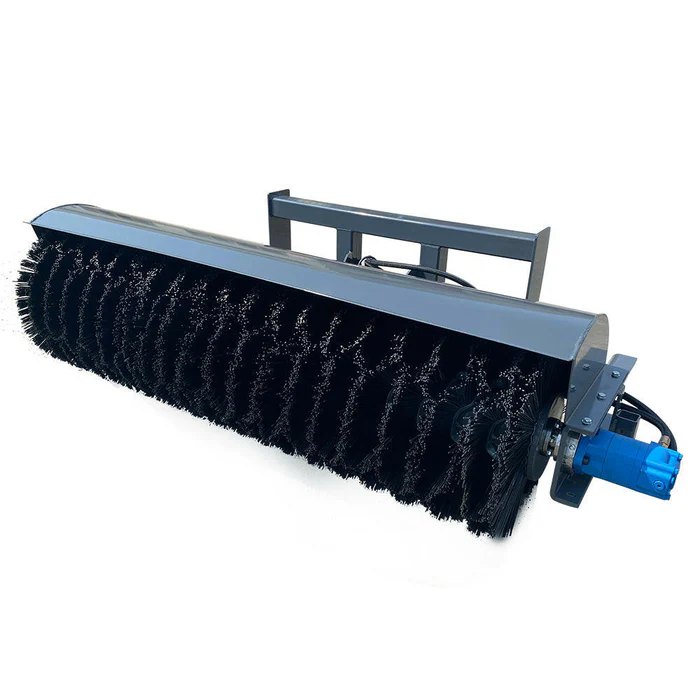

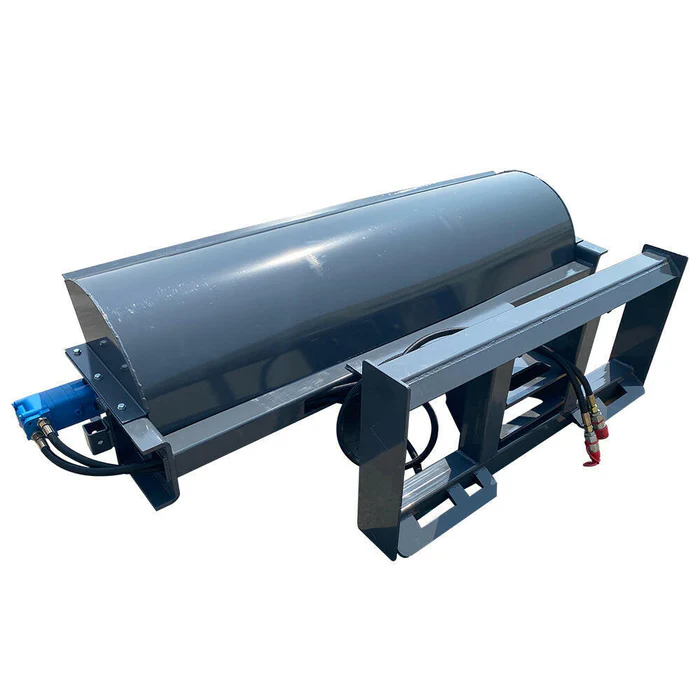

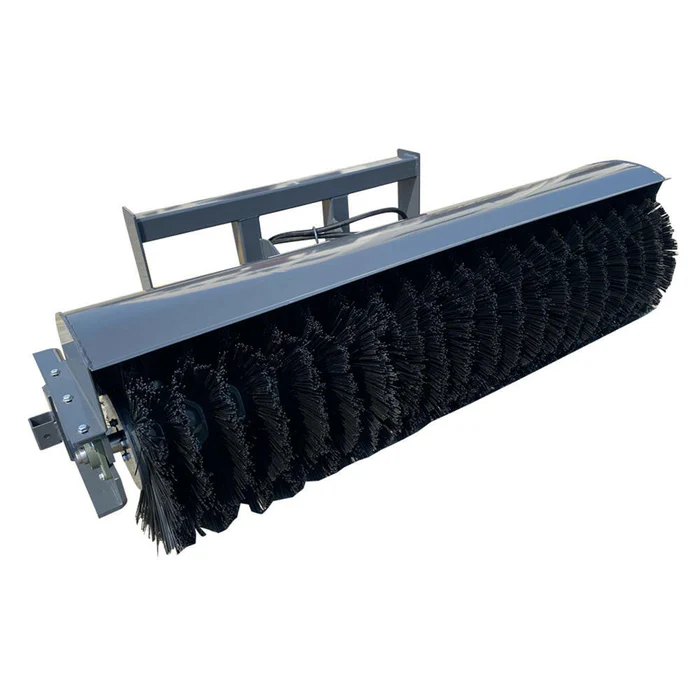

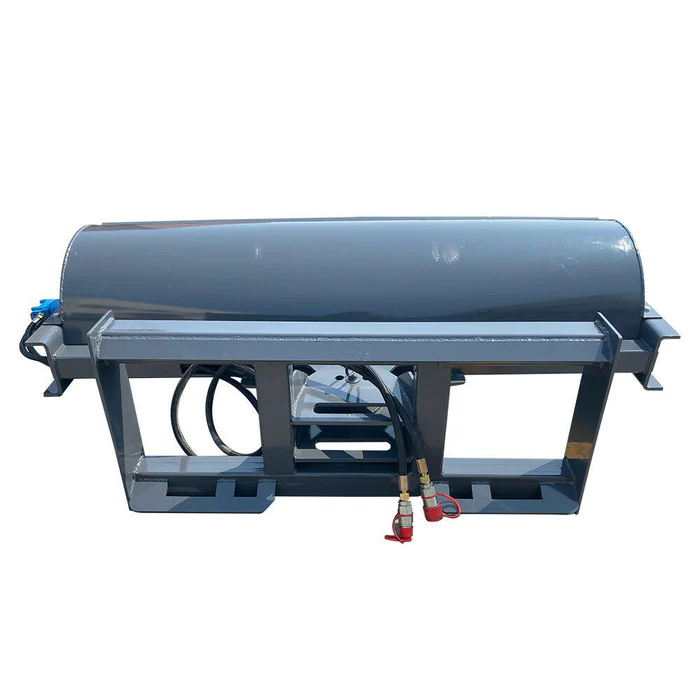

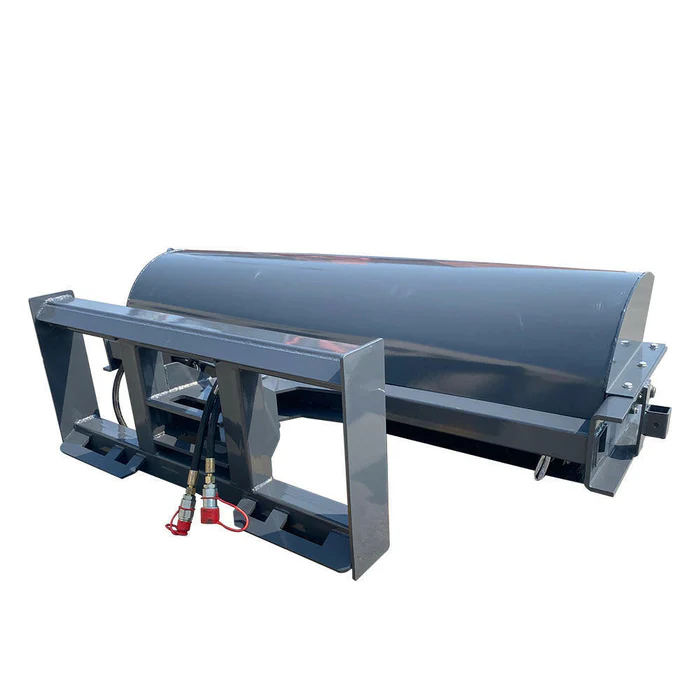

72″ Skid Steer Broom Sweeper

Description

The SSAB72 is designed to handle the rigors of professional use. Unlike fixed brooms, this model features hydraulic angling, allowing the operator to pivot the brush up to 30 degrees left or right from the comfort of the cab. This allows you to windrow material away from curbs, walls, and structures with precision, significantly reducing the need for manual touch-up work

Heavy-Duty Brush and Motor System

Equipped with 41 high-durability wafers, the brush system uses a hybrid poly/wire design that balances aggressive scrubbing power with a long service life. The 31.49″ large-diameter brush ensures that the bristles have a massive contact area with the ground, while the high-torque hydraulic motor provides the rotational speed necessary to flick debris forward and away from the machine.

Adaptive Floating Linkage

A standout feature of this sweeper is its integrated floating linkage design. This system allows the broom to follow the contours and undulations of the road surface automatically. By maintaining consistent downward pressure without operator adjustment, the floating linkage prevents uneven bristle wear and ensures a thorough clean on asphalt, concrete, and uneven dirt paths.

Protection and Longevity

To protect your hydraulic system, the SSAB72 comes standard with a case drain line (the third hose). This critical component releases internal motor pressure, preventing seal failures and extending the life of the motor during long hours of continuous operation. The motor is further protected by a heavy-duty steel guard frame to prevent damage from impacts with curbs or debris.

Key Features & Benefits

• Hydraulic Angle Control: Pivot 30° left or right to direct debris exactly where you want it.

• Floating Linkage Design: Keeps the broom adaptable to uneven surfaces for consistent cleaning.

• 16-21 GPM Flow Rate: Optimized for the most common standard-flow skid steer loaders.

• High-Torque Bi-Directional Motor: Allows for forward and reverse rotation to clear stubborn material.

• Case Drain Included: Increases motor longevity by managing hydraulic pressure spikes.

• Universal Quick-Attach: Compatible with Bobcat, CAT, Kubota, John Deere, and Case machines.

• Adjustable Metal Stand: Protects the bristles from flattening when the attachment is in storage.
